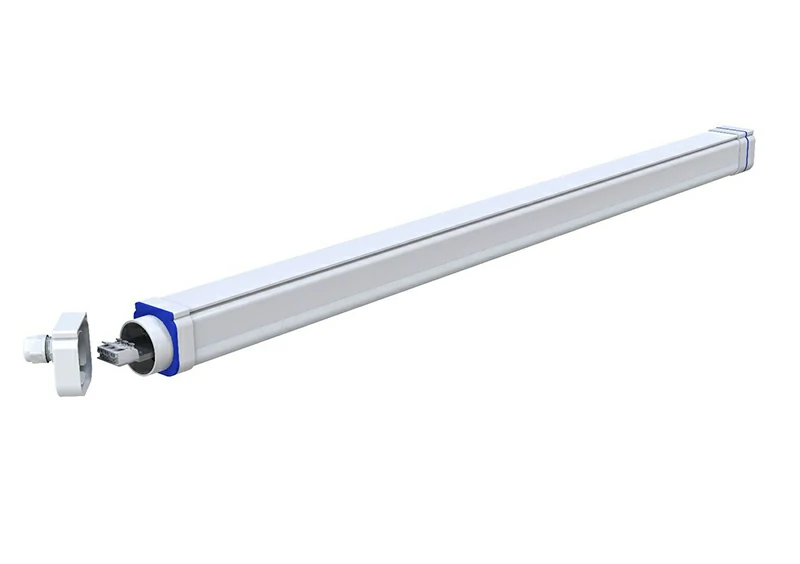

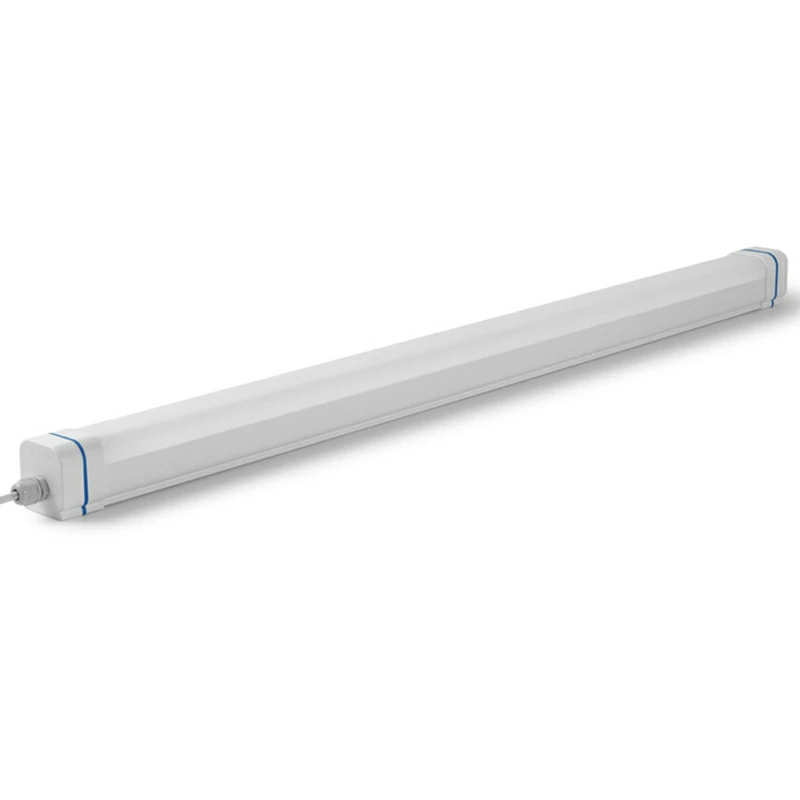

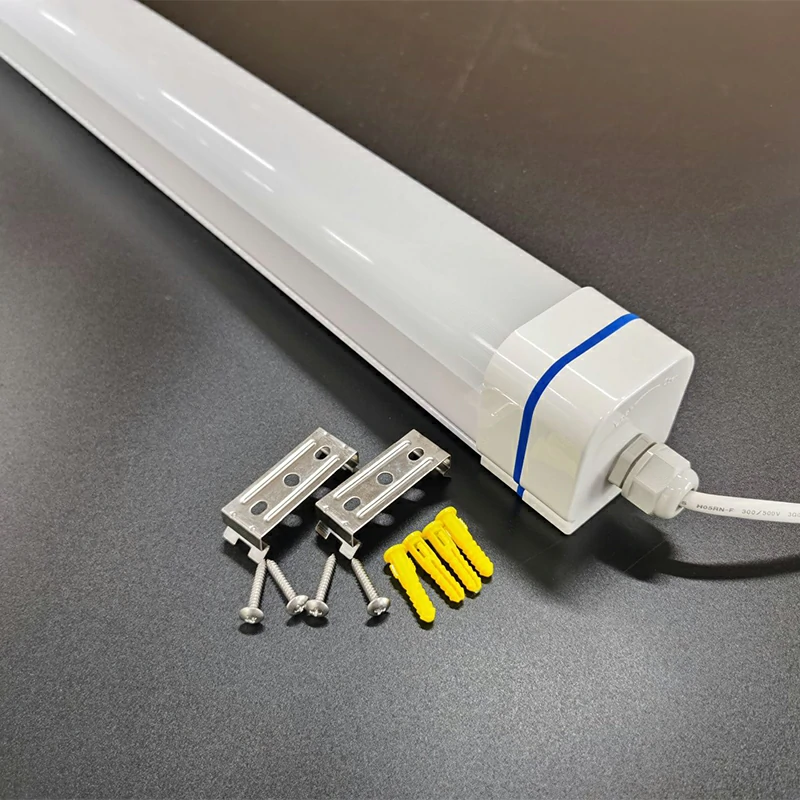

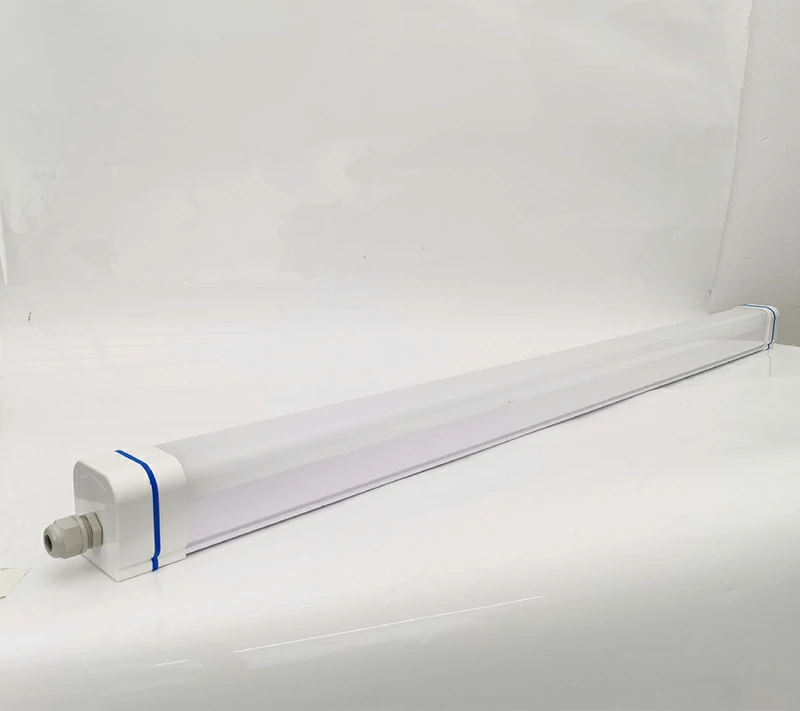

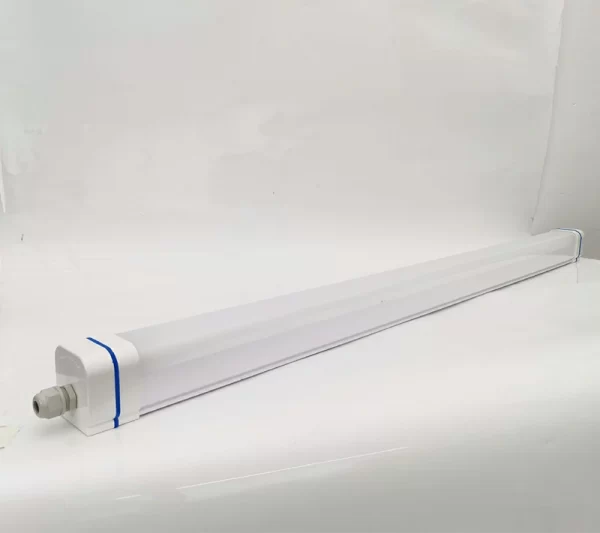

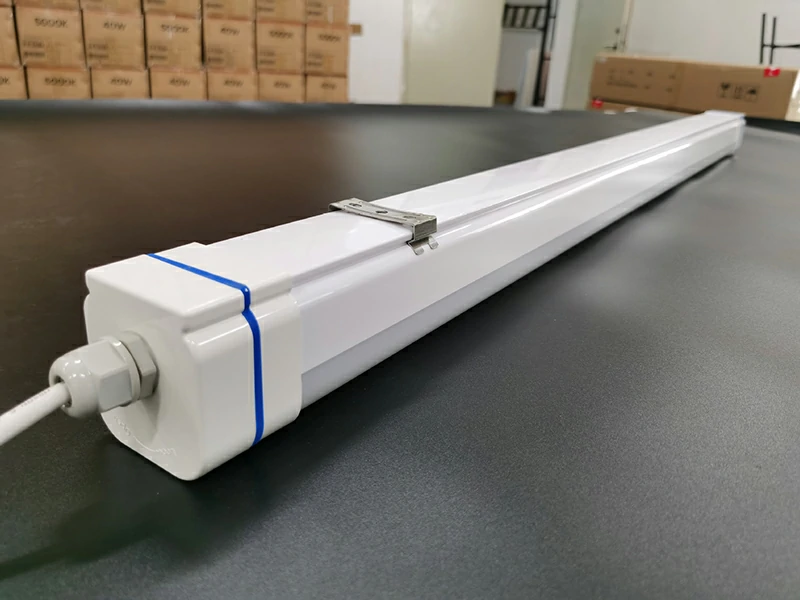

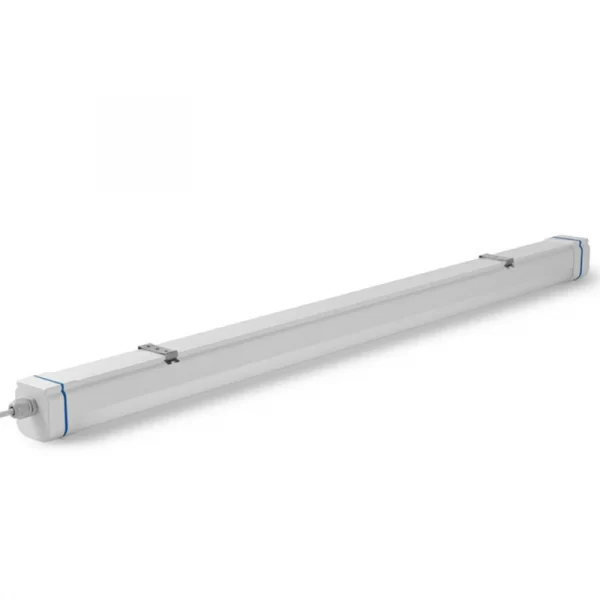

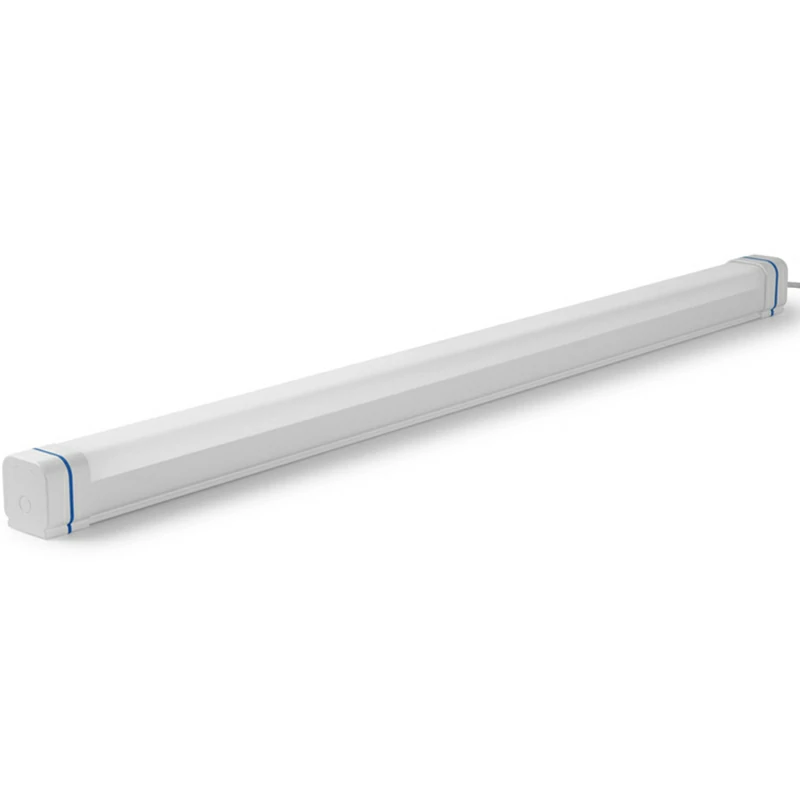

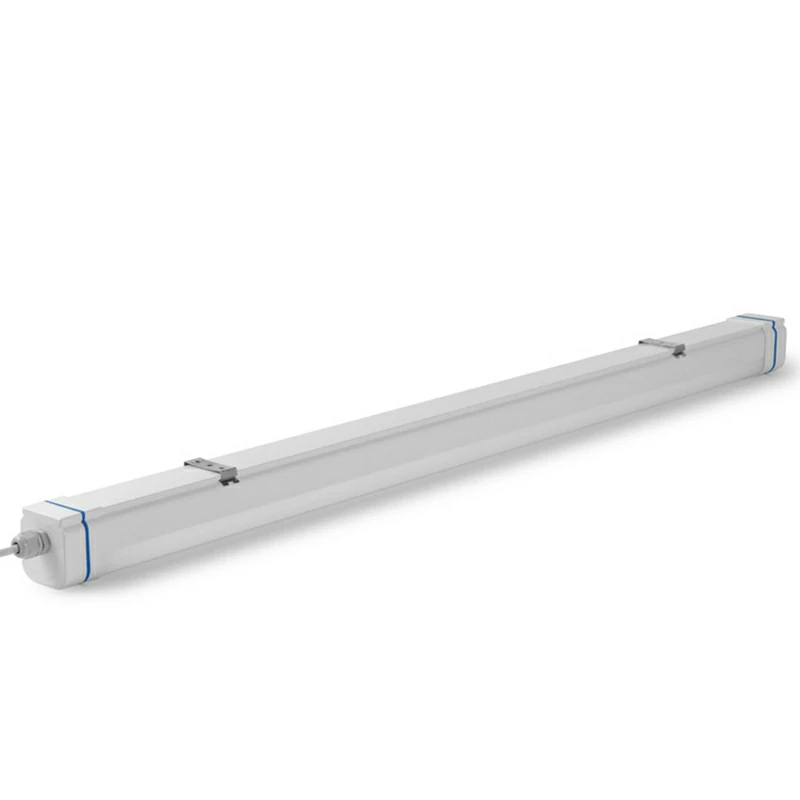

Model:IN-TP0001

Product Description

Features:
> Special driver try for replacement.

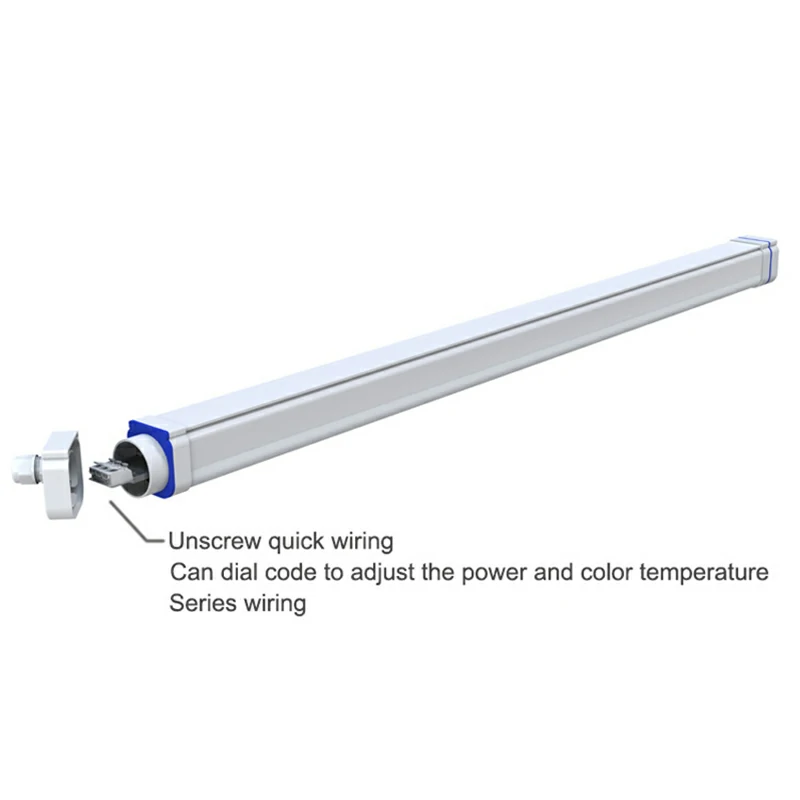

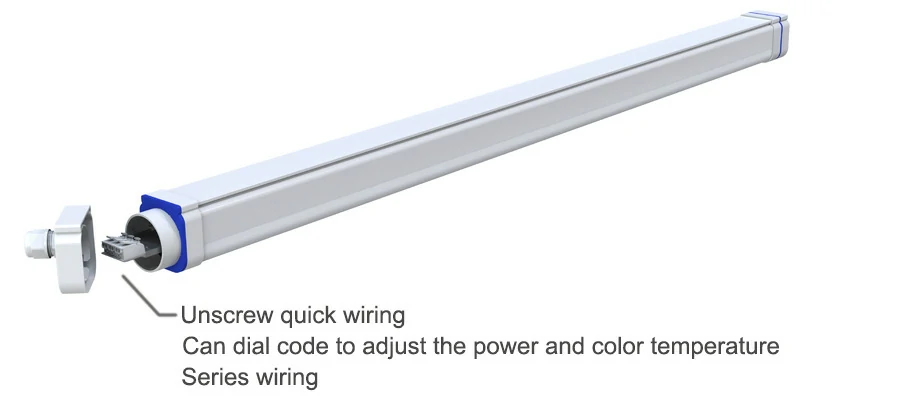

> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.
> Patent aluminum case as heatsink.
> 5 years warranty.

Electrical:
> Power: 2ft=15W-25W, 4ft=25W-45W, 5ft=40W-60W, 8ft=80-100W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option

Optical:

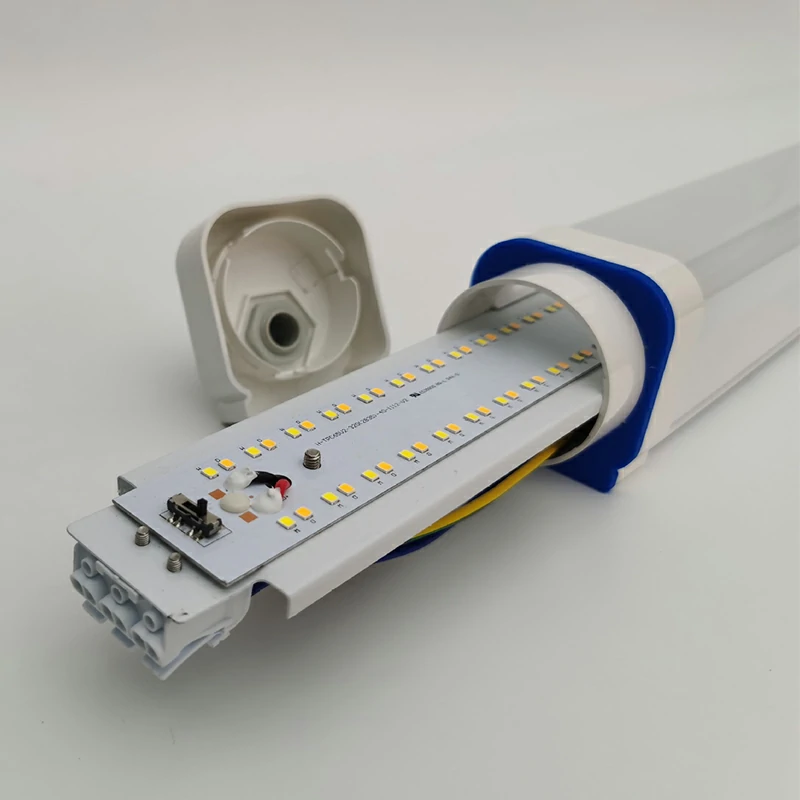

> High bright 2835 SMD LEDs, 100lm/W, 120-130lm/W, 140-150lm/W.

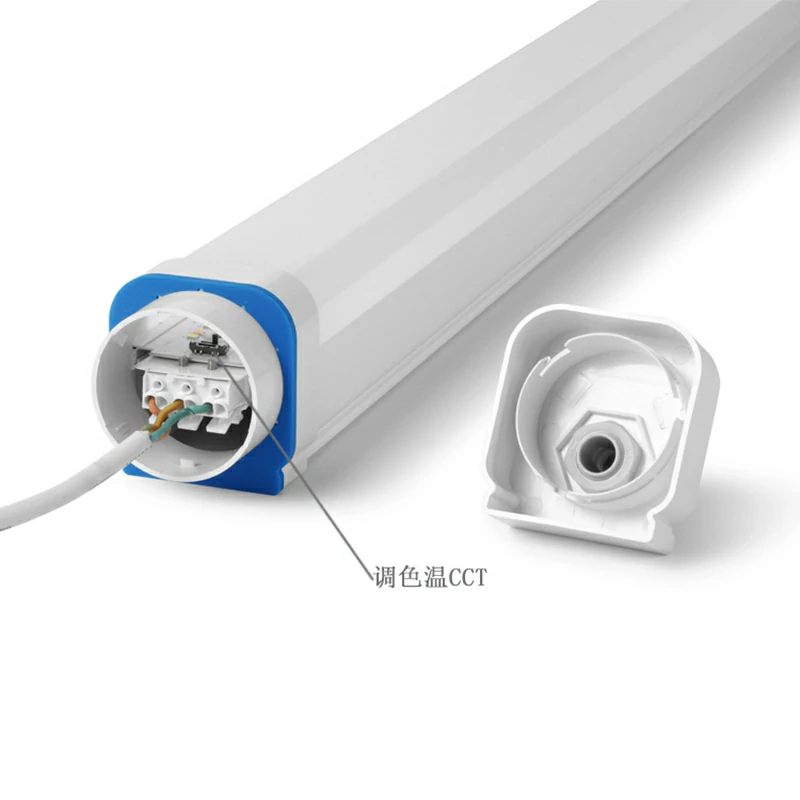

> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
Datasheet:
item
L=0.6M/2ft
L=1.2M/4ft
L=1.2M/4ft
L=1.5M/5ft
L=2.4M/8ft
Color Index
Ra>80 OR Ra>90
Color Temperature
Single color:WW:3000K NW:4000 PW:5000K CW:6000K
Tri-color:3000/5000K, Mixed:4000k
Beam Angle:120 Degree
Power Factor:PF>0.95
Input Voltage:AC100~277V/50Hz
Working Voltage:Constant DC36~42V
Protection Class:IP65 | IK10
Temperature:Operation:-15°C~+50°C Storage:-25°C~+55°C
Life Span:50,000 hours
Warranty:5 Years
