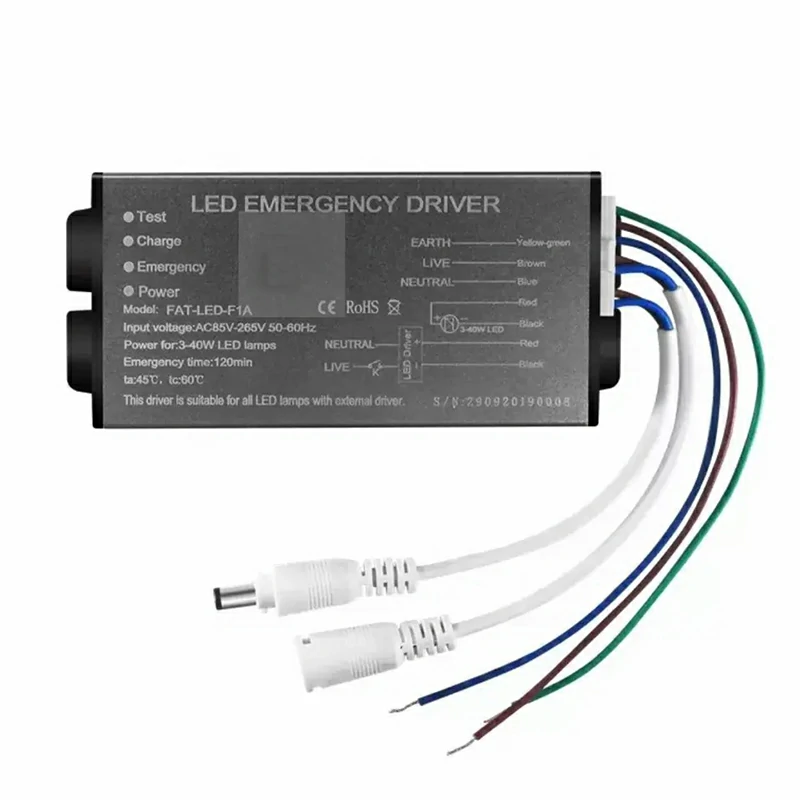

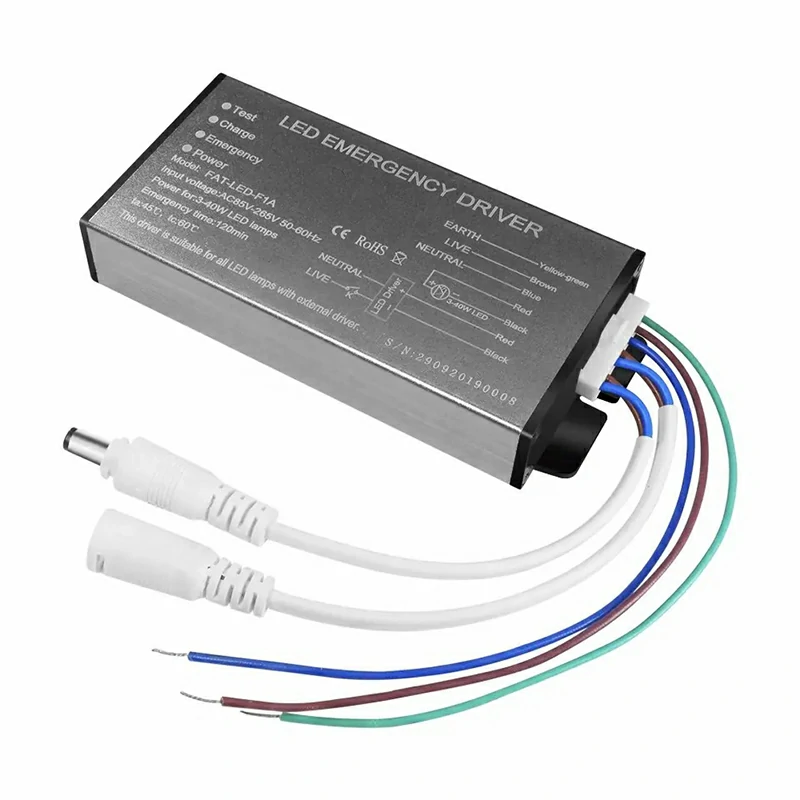

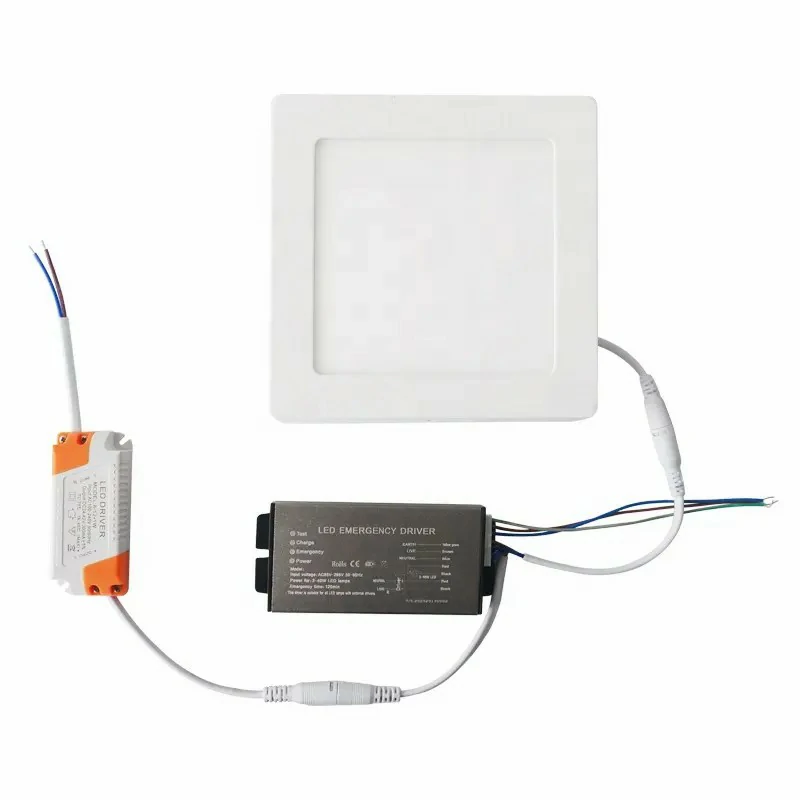

Direct Source LED Emergency Driver for LED panel Down Light 3-50W, 60W max. LED Emergency Kit

$328.00

100pcs/lot(1lot = 100pcs)

Direct Source LED Emergency Driver for LED panel Down Light 3-50W, 60W max. LED Emergency Kit

Battery 3.7V 2400mAh
Input Voltage AC85-265V 50/60Hz
Working Temperature 0~55ºC
Input power 3W to 50W (60W max.)
AC fuse 1A 250V
Output power 4W
DC fuse 5A 250V

Categories: , Tags: , ,

Description

Direct Source LED Emergency Driver for LED panel Down Light 3-50W, 60W max. LED Emergency Kit

Direct manufacturer with design patent and utility model patent; CB CE RoHS Approval. Customized logo or packaging is available.

Battery 3.7V 2400mAh
Input Voltage AC85-265V 50/60Hz
Working Temperature 0~55ºC
Input power 3W to 50W (60W max.)
AC fuse 1A 250V
Output power 4W
DC fuse 5A 250V
Type of lamp LED luminaire with external led driver
Switching time to Emergency <2S
Charging time 24Hrs
IP Rating IP30
Backup duration 2-3hrs

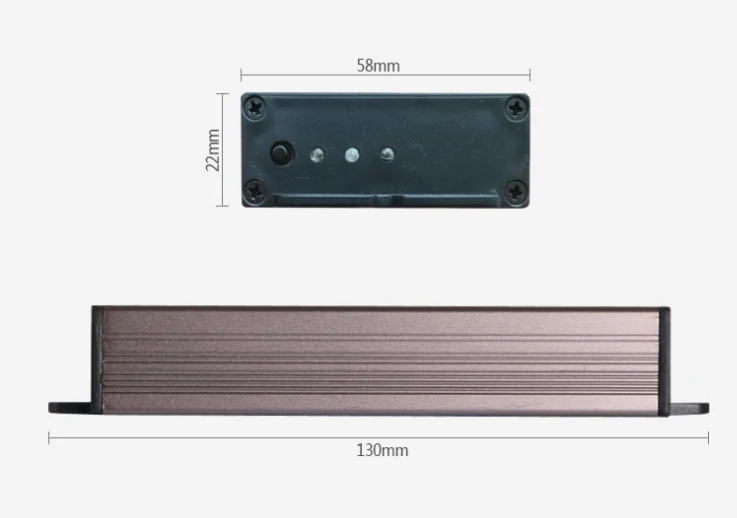

Dimension 130x58x22 mm

Quantity:100pcs/set

Structure and operating principle:

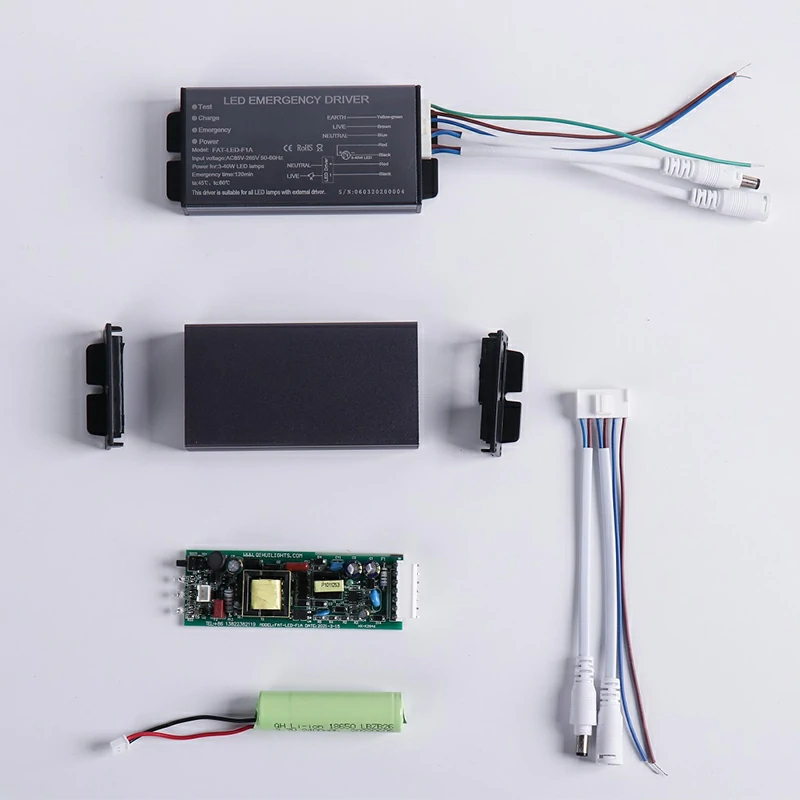

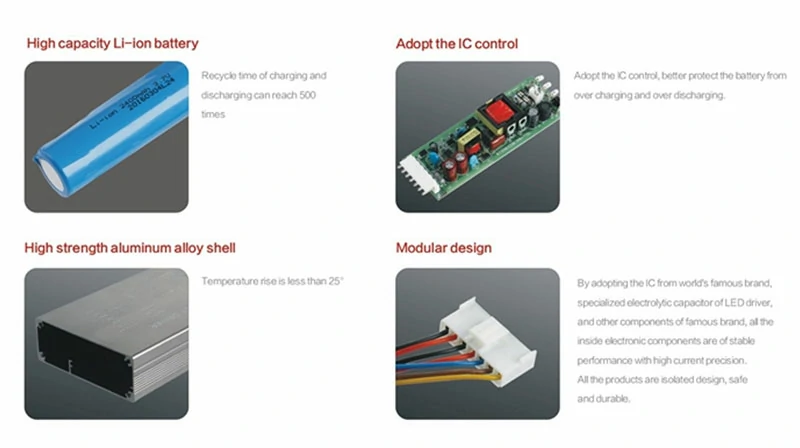

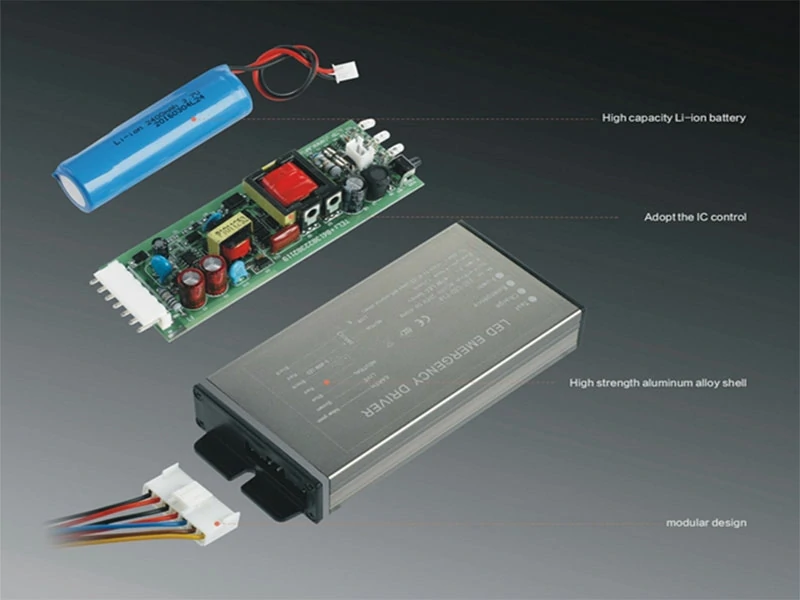

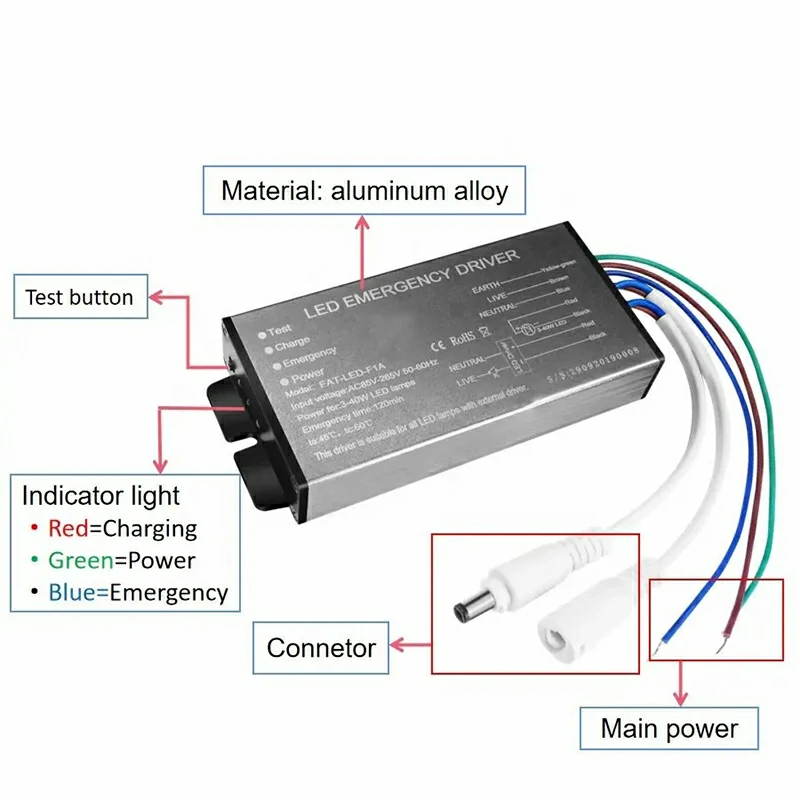

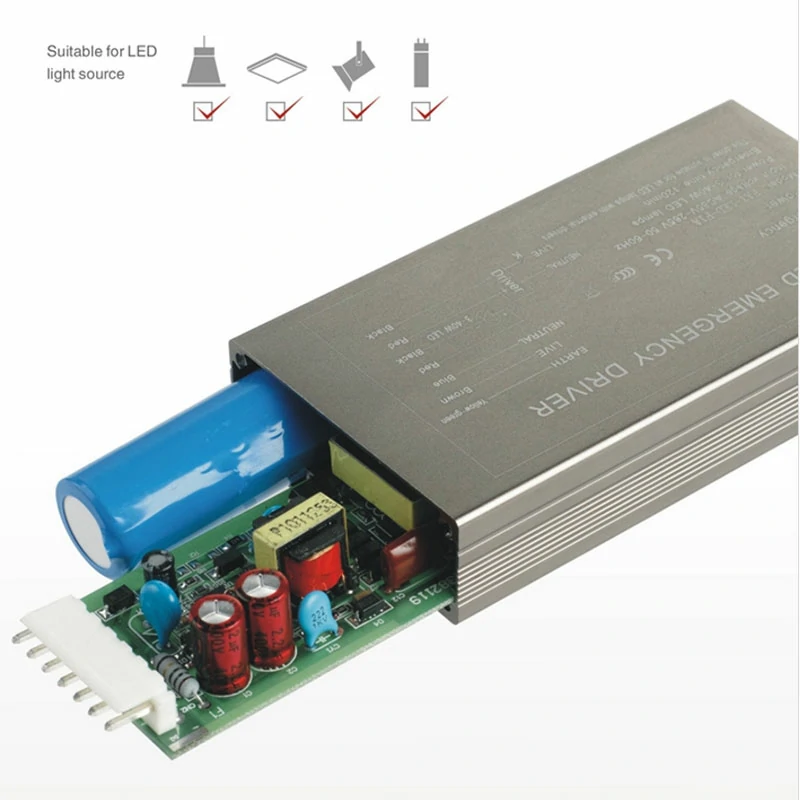

The lamp housing of this emergency driver adopts good-quality aluminum and flame-retardant plastic. It has novel appearance and low weight and being convenient to install, so you can rest assure its safety. It mainly includes housing, side cover, input & output wire, PCB and battery etc. Its battery adopts Li-ion battery with long lifespan. Its PCB adopts SMT technology, using IC control design in charging/discharging and power supply part.
